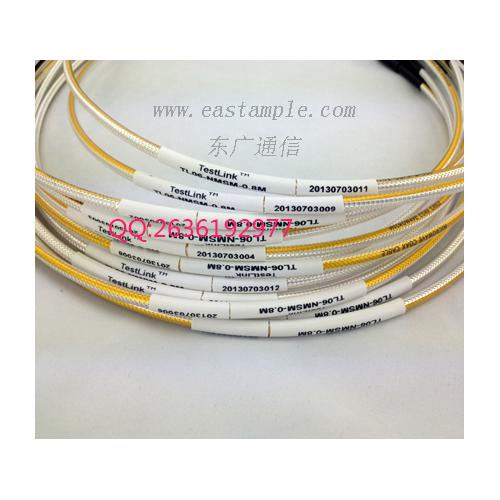

温度范围Temperature Range

-55℃/+125℃

电气性能Electrical Specifications

VSWR(max)

驻波

3Ghz

6Ghz

18Ghz

26.5Ghz

SMA  3.5mm

1.1

1.15

1.2

1.30

N  3.5NMD

1.1

1.15

1.25

BNC

1.15

阻抗Impedance

50 Ω

传播速率VP

73%

屏蔽效率Shielding Effectiveness

>110dB

电容Capacitance

96.41pf/Meter

机械相位稳定性 Phase Stability

DC-10Ghz +/-1.1° 10-18Ghz+/-2° +/-2.0

幅度稳定性Amplitude Stability

DC-26Ghz  +/-0.05dB

配相Phase Match

Custom可按客户来订制

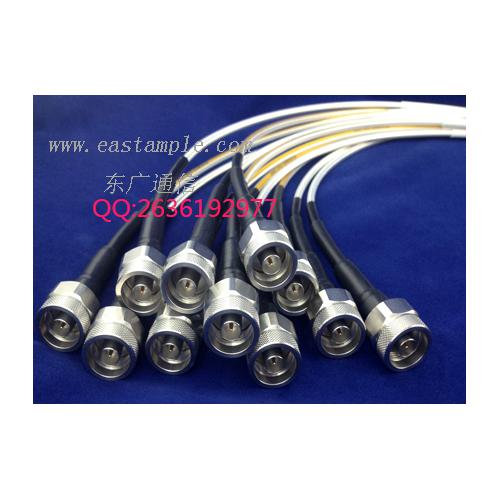

配接连接器种类 Connector Types

连接器Connector

缩写Code

工作频率Max Frequency

SMA 公头Male

SM

DC-26.5Ghz

3.5mm公头 Male

3M

DC-27Ghz

SMA母头 Female

SF

DC-26Ghz

3.5mm母头Female

3F

DC-27Ghz

N公头Male

NM

DC-18Ghz

N母头Felame

NF

DC-12Ghz

3.5NMD

35NMD

DC-27Ghz
