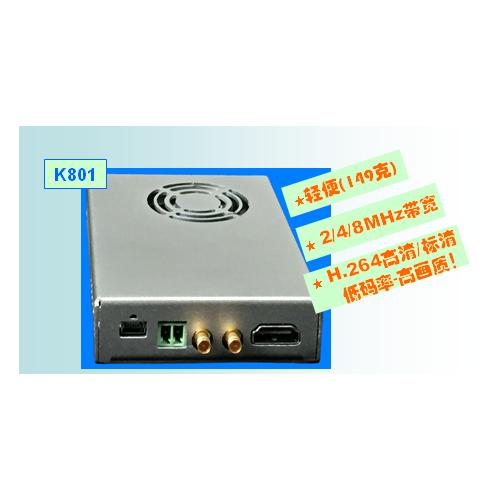

发射机 K801系列
•H.264编码

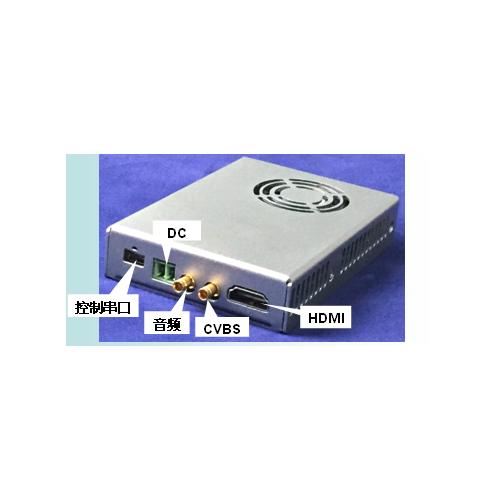

•HDMI + CVBS输入。
•COFDM(DVB-T) 2MHz\4MHz\8MHz调制。
•抗多径干扰能力。
•OLED主动发光显示屏 – 适合户外操作。
•***小尺寸、谨重149克。
K801 发射机技术指标
Freq Range: 300-860 MHz
Tuning : in 1MHz steps
Bandwidth: 2/4/8MHz
TxPower: 2W
Modulation : COFDM DVB-T 2/4/8MHz
QPSK, 16-QAM, 64-QAM
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval: 1/32, 1/16, 1/8, 1/4
Data Rate: 1.5 to 24Mbit/s
Encoding: Video: H.264 up to High Profile
Audio: MPEG1 Layer 2
Video Format: 1080i: 1920 x 1080, 50i 60i
720p: 1280 x 720, 50p 60p
480i (NTSC): 720 x 480
576i (PAL): 720 x 576
Video Input: HDMI or Analogue: Composite (PAL/NTSC)
Latency : 70-800ms
Audio Input : 2 channels line-in / SDI embedded/ HDMI
User interface: OLED display, English
5-key joystick, full functions.
Power Supply: 12 - 25VDC (25W)
Dimensions: 101 x 71 x 21mm (excluding ant)
Weight: 149g
Environmental
Temperature: -20° to +50°C
Humidity: <95%
